Overview
The Convert Driving Side option transforms paired ASAM OpenDRIVE (.xodr) and OpenSCENARIO (.xosc) files between Right-Hand Traffic (RHT) and Left-Hand Traffic (LHT).
By performing a full spatial mirror across road geometries, lane structures, vehicle spawn points, trajectories, and traffic rules, it ensures complete behavioral consistency without requiring manual scenario re-authoring. All converted datasets undergo automated ASAM schema re-validation and include synchronized OpenLABEL ground-truth metadata ready for immediate simulation.

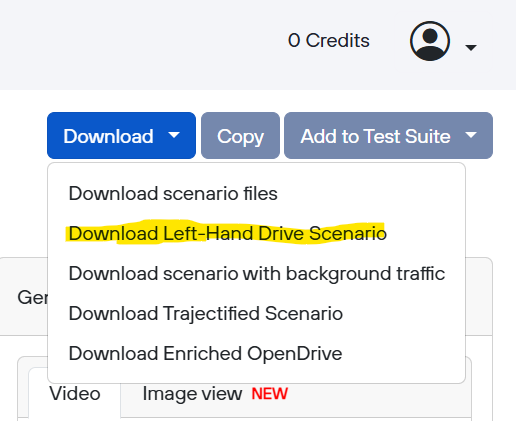

Steps to Convert and Download Scenarios.png)
Open any OpenX Scenario from your workspace.
In the top-right toolbar, click the Download dropdown button.
Select Download Left-Hand Drive Scenario (or Download Right-Hand Drive Scenario) from the available options.
Note: The downloaded .zip file contains 3 synchronized files: OpenDRIVE (.xodr), OpenSCENARIO (.xosc), and OpenLABEL (.json).
Handedness Transformation Mechanics & Conversion Logic
When switching between Right-Hand Traffic (RHT) and Left-Hand Traffic (LHT), the platform applies a coordinate-level spatial reflection across a vertical mirror axis (x = 0 in world coordinates). The transformation guarantees geometric continuity, valid lane topology, and consistent vehicle maneuvers.
1. OpenDRIVE (Map & Infrastructure) Transformations
Traffic Rule Definition: Updates the road rule attribute to the target standard (RHT to LHT, or LHT to RHT).
Lane Groups & IDs: Swaps left and right lane groups. All lane IDs are negated (for example, Lane +1 becomes Lane -1), ensuring driving directions align with the target traffic rules.
Plan-View Geometry:
Reflects initial Cartesian positions: x' = -x
Adjusts heading angles: hdg' = π - hdg
Negates curve parameters (such as arc and spiral curvatures).
Superelevation & Crossfall: Inverts lateral slope coefficients across the road profile (t-axis) from (a, b, c, d) to (-a, -b, -c, -d).
Objects & Road Signals: Inverts lateral distances (t to -t) and orientations; remaps lane validity ranges (fromLane to toLane) to the mirrored lane IDs.
Junction Connections: Updates all incoming and outgoing lane connection IDs to match the newly assigned lane IDs.
2. OpenSCENARIO (Vehicles, Positions & Actions) Transformations
Vehicle behaviors, routes, and coordinate references are converted across all supported OpenSCENARIO positioning formats:
World Positions (WorldPosition):
Horizontal position is reflected: x' = -x
Absolute yaw heading is transformed: hdg' = π - hdg
Roll angle is inverted: r' = -r (preserving vehicle bank in corners).
Lane Positions (LanePosition / RelativeLanePosition):
Lane identifier is negated: laneId becomes -laneId
Lateral lane offset is negated: offset becomes -offset
Longitudinal distance along the road (s) remains unchanged.
Road Positions (RoadPosition / RelativeRoadPosition):
Lateral offset t from the reference line is inverted: t becomes -t.
Relative Object Positions (RelativeObjectPosition):
Entity-local lateral offset is inverted: dy becomes -dy while longitudinal distance (dx) and vertical distance (dz) remain intact.
Geographic Coordinates (GeoPosition):
Longitude coordinates are reflected using tangent-plane projection relative to the map's geodetic reference origin (+lon_0, +lat_0).
Trajectories & Maneuvers:
Clothoid/spiral curvature and curvature rate of change are inverted to mirror turning maneuvers accurately.
Linked road logic file paths are updated to point to the newly generated OpenDRIVE file.
3. Automated Validation & OpenLABEL Generation
ASAM Schema Compliance: Both transformed XML files are validated against official ASAM OpenDRIVE (v1.6.0) and ASAM OpenSCENARIO (v1.1.0) XSD schemas prior to export.
OpenLABEL Ground Truth: An updated OpenLABEL JSON file is automatically compiled, containing full scene categorization, mirrored entity paths, and scenario tags.
